Welded steel H section

Welded light gauge steel H section is H-steel manufactured continuously from a hot-rolled steel strip by high-frequency resistance welding. It features thinner plate thickness and more accurate cross sectional dimensions compared to a hot-rolled H section.

Sanjuyuan steel structure, a top manufacturer of welded light gauge steel H section, meets the needs of various fields including prefabricated housings, temporary housings, structural steel frames, Pre-engineered buildings,and supports advanced structures through our reliable quality

Features:

1. Freely specifiable dimension to meet various design needs

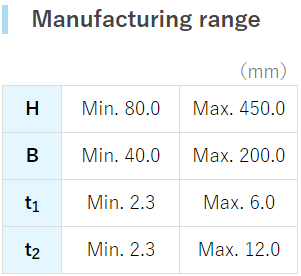

More than 60 standard dimensions within the following manufacturing range are available, enabling a variety of design needs to be met.

We can also manufacture steel H section in dimensions other than standard dimensions.

2. Excellent cross-sectional performance 2 for realizing economical design

Welded light gauge steel H section is between 20 and 30% lighter than hot-rolled H section (rolled H) for the same cross sectional performance, thus realizing economical design.

3. High dimensional accuracy 3 for reduced processing cost

Because the plate thickness is thin and the dimensional accuracy is high, the product is suitable for shear cutting and hole punching, making it optimal for automated processing lines.

4. Quality of base material and welds for ensuring high reliability

The base material used is hot-rolled steel strip which is optimum for high-frequency resistance welding and is manufactured using the sophisticated technology of an integrated steelworks.

5. Highly durable welded light gunge steel H section

We also manufacture welded light gauge steel H section which uses highly durable hot-dip zincoated steel strip
